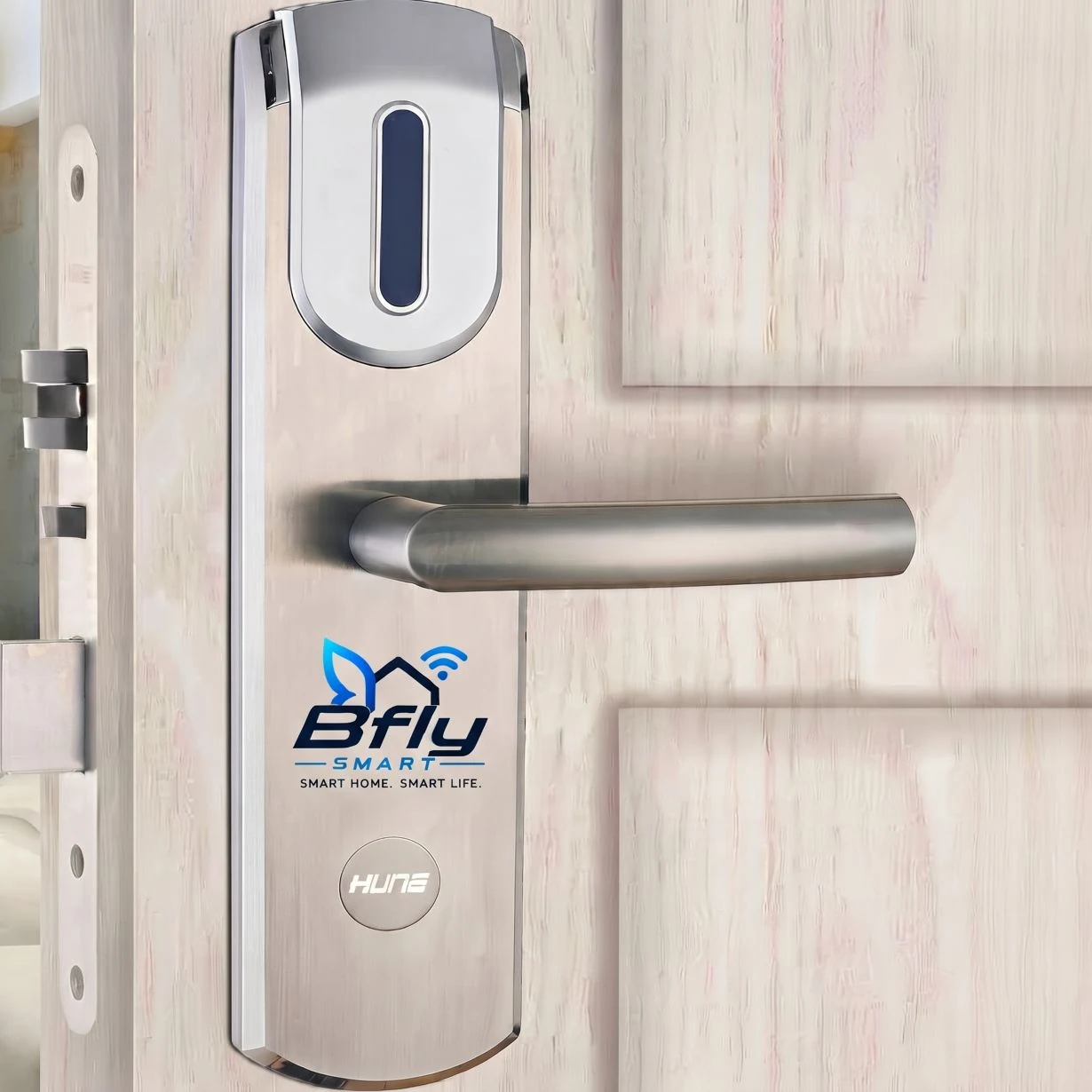

930-8-D Stainless Steel Smart Door Lock
Product Overview
The 930-8-D is a pure stainless steel, highly durable smart lock featuring a sleek modern design. It is UL listed and equipped with an anti-panic exit function, making it ideal for high-security commercial and residential applications.
Key Features & Design
Material & Build: Crafted from pure 304 stainless steel.
Safety & Security: Includes an anti-panic exit function for rapid emergency egress.
Card Detection: Utilizes an advanced microwave card detection mode for smooth contactless technology.
Mortise Flexibility: Applicable with both European standard mortises (such as optional 6#-2) and ANSI mortises (Mortise ANSI-L).
Software Compatibility: Can operate with or without management software (must be specified when placing an order).
Everything you need to know
Product Description
Product Overview
The 930-8-D is a pure stainless steel, highly durable smart lock featuring a sleek modern design. It is UL listed and equipped with an anti-panic exit function, making it ideal for high-security commercial and residential applications.
Key Features & Design
Material & Build: Crafted from pure 304 stainless steel.
Safety & Security: Includes an anti-panic exit function for rapid emergency egress.
Card Detection: Utilizes an advanced microwave card detection mode for smooth contactless technology.
Mortise Flexibility: Applicable with both European standard mortises (such as optional 6#-2) and ANSI mortises (Mortise ANSI-L).
Software Compatibility: Can operate with or without management software (must be specified when placing an order).
Technical Specifications
Feature | Specification Details |
|---|---|
Applicable Card | Mifare 1 (Desfire Optional, Bluetooth Optional) |
Material | Stainless steel 304 |
Mechanical Key Override | Yes |
Power Supply | 4 standard AAA alkaline batteries (approx. 18 months in normal state) |
Indications | Light, Sound (Mute, Beep, or Music optional) |
Deadbolt Indication | Blue and red light when touching key card |
Audit Trail | Unlocking record for trail supported |
Alerts & Special Modes | Low voltage warning; Passage mode for meeting room |
Power Consumption | Static: 12uA | Dynamic: 300mA |
Operating Environment | Working Temperature: $-10^\circ\text{C} - 60^\circ\text{C}$ | Humidity: $20\% - 80\%$
|
Handle Options | C Handle, E Handle, or Client specified |
